8-Input / 8-Output Analog I/O Card

The Analog I/O Card has 8 simultaneous sampling A/D and D/A channels using the TI TLV320AIC23 Audio Codec. The input channels accept line level or an electret microphone interface is provided. The output channels provide a single ended or differential headphone driver.

  • 8 simultaneous sampling channels in

  • 8 simultaneous channels out

  • True 16 bit sigma-delta conversion

  • 2.6KHz to 96 KHz Sample Rates

  • Single ended or differential headphone outputs.

  • Provisions for electret microphone biasing.

  • Provisions for summing 4 analog signals with four of the outputs.

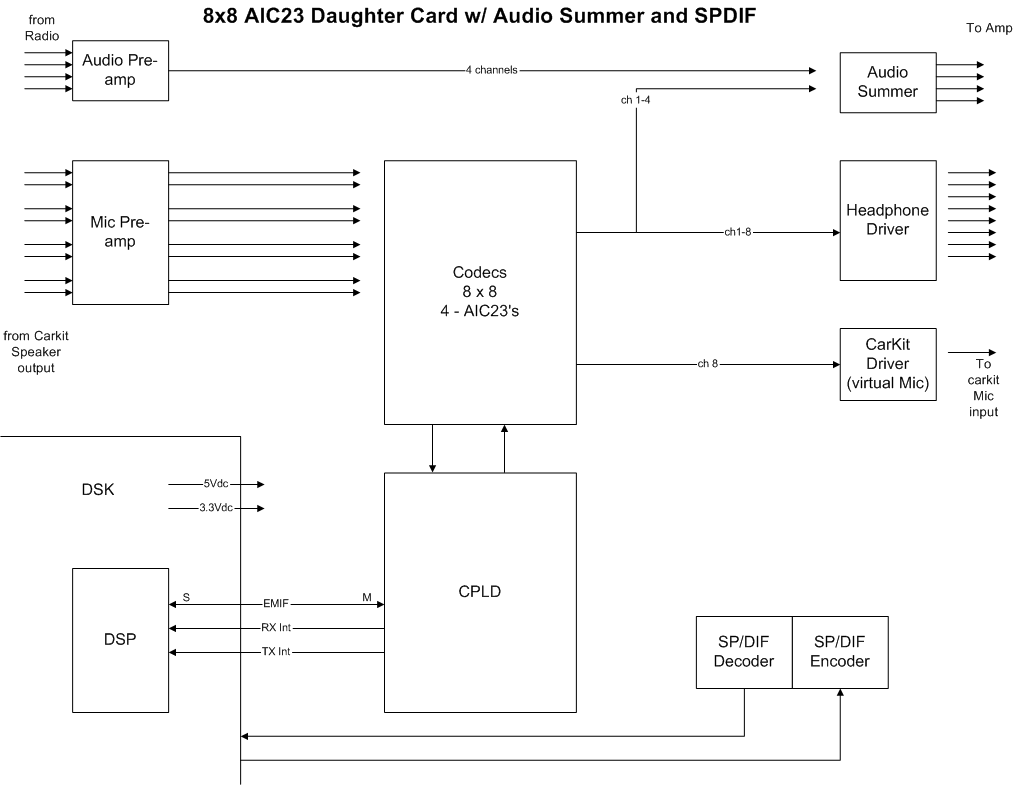

Click thumbnail for schematic:
